aluminum frame for solar panel 35mm thickness drawing

Solar panel frame thickness 35mm

To be your reliable solar panel frame thickness 35mm partner

aluminum frame for solar panel 35mm thickness drawing
Ask for Price NOW

Product Description:

Item: solar panel frame thickness 35mm
Solar frame model: ASF-2171
Thickness: 35mm height
Type: silicon frame installed
Raw material: 6063/6005 aluminum alloy
Frame Section Size: 35*35mm
Slot size: 5mm
Suitable glass: 3.2mm thickness
MOQ: 1500sets
Color: silver/black
Payment terms: TT or L/C
FOB price: Negotiable
Common Specifications:1640*992mm/1956*992mm

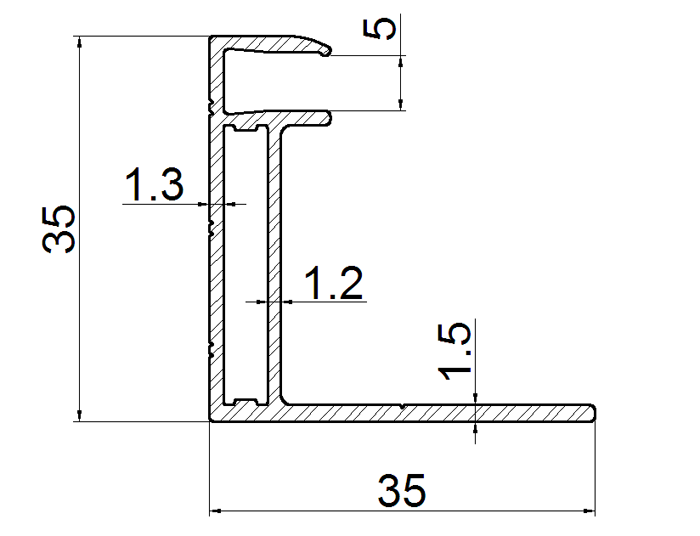

Frame Drawing:

aluminum frame for solar panel 35mm thickness drawing

Chemical Composition of Aluminium Alloy:


Mechanical Properties of Aluminium Alloy:

AlloyTemperThicknessT.S./σb (MPa)Y.S/σ0.2 (MPa)ELOG./δ%Hardness/HW
6063T5≥ 0.8≥160≥110≥8≥8
6063T6≥ 0.8≥205≥180≥8≥10
6005T5≥ 0.8≥260≥240≥6≥12
6005T6≥ 0.8≥270≥250≥6≥14

All Solar Panel Sizes as Below for Reference:

Power (w)Number of cells(pcs)Size of cells(mm)Solar panel frame size(mm)Weight (Kg)


  • Container Loading Capacity for General Solar Frame:
     for 20 feet container;
  • 4000-4500 sets aluminum frame for 60 cell solar panel (1640*992mm)
  • 3500-4000 sets aluminum frame for 72 cell solar panel (1956*992mm)
  • for 40 feet container;
  • 8000-8500 sets aluminum frame for 60 cell solar panel (1640*992mm)
  • 7500-8000 sets aluminum frame for 72 cell solar panel (1956*992mm)

1. Abundant Solar Frame Capacity
Currently our solar frame capacity is 500,000 sets per month and 70% export to India、Japan、Korean、Thailand、UK、Germany、Australia and US markets etc.

2. Best Quality Control
Complete quality control system on solar frame and 100% OQC to keep the quality.

3. High Precision Solar Frame Processing

4. Equipped with advanced processing machine from Japan and Germany to keep the frame length tolerance within ±0.5mm

5. High Precision Corner Key Processing
Equipped with advanced processing machine from Japan and Germany to keep the key length tolerance within ±0.15mm

6. Rich Solar Frame Experiences
We got rich working experience with global customers over lots of solar projects.

7. One-Stop Service
From inspection of raw material, solar frame extrusion, aging oven treatment, sandblasting, anodizing, film coating, finish processing, packaging and loading

8. 24×7 Live Support

Buy It Now
Ask for PRICE of this solar panel frame thickness 35mm

Aluminum profile for solar panel (Related)

What is solar panel frame?

Solar panel frame is also called solar panel aluminum frame, It is the most important part in assembling for Solar Panel. solar panel frame is an extruded aluminum frame which used to seal and fix solar module components. It can protect the solar cell and glass out of damage and break.
Besides framed PV panels are better protected during transport than frameless solar panels. So more and more thin film solar companies would love to use the frame on their new solar panel design.

Advantage of solar panel aluminum frame

1. Corrosion resistance and strong oxidation resistance;
2. Strong strength and firmness;
3. Strong tensile strength;
4. High elasticity, rigidity and metal fatigue value;
5. Convenient transportation and installation, even if the surface is scratched, it will not oxidize, and does not affect performance;
6. It can adapt to various environments through convenient selection of different materials;
7. The service life is more than 30-50 years.
